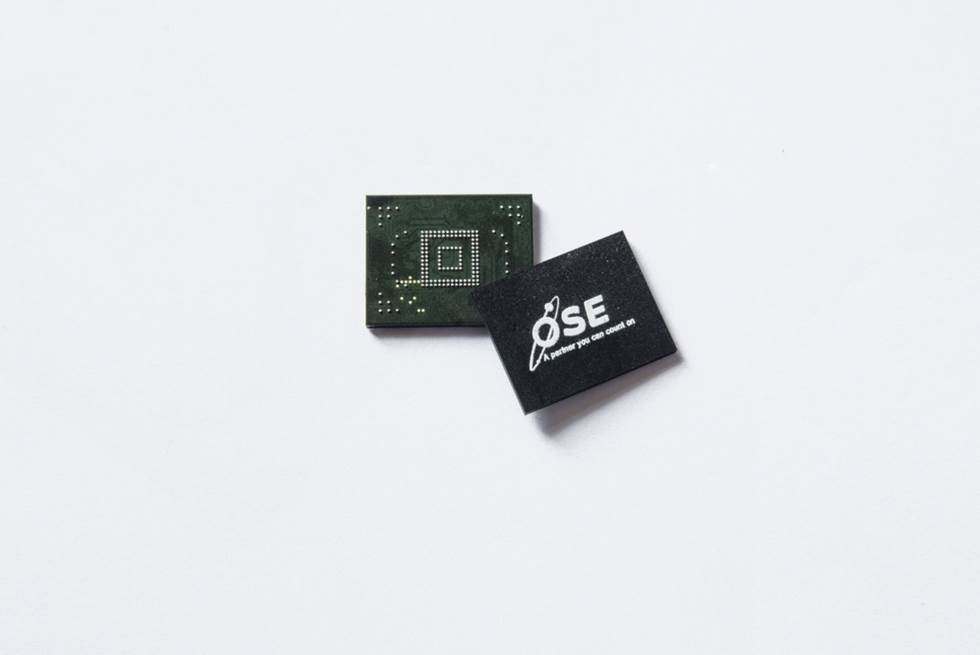

uSSD
uSSD (micro Solid-state drive/micro Solid-state disk)
Minimize the volume and area of the product
Minimize the volume and area of the product
uSSD is a type of storage devices that consists of controller and flash memory chips. With the application of 3D flash memory stacking, it narrows the range between each chip to save the product size, improve the transmission speed and lower the operating temperature to enhance the package value.
Application
• High-end Mobile Device
• SSD
• Laptop
Advantage
• Small Form Factor
• Advanced Read/Write Speed
uSSD Reliability Test Condition
Test samples will be subjected to Jedec Std MSL 3 pre-conditioning unless the customer has special requirements.
| Test Item | Application | Method | Condition | Remark |
| Pre-Condition | JEDEC-STD-22 | A113 | MSL 3 | |
| Temp. Cycle | JEDEC-STD-22 | A104 | -65+0/-10℃ & 150+15/-0℃ |
Air to Air 2 cycles per hour |
| High Temp. Storage | JEDEC-STD-22 | A103 | 150+10/-0℃ | |
| HAST | JEDEC-STD-22 | A118 | 130℃/85%R.H. 33.3 psia | Without Bias |
Cross-section Diagram of
uSSD
uSSD Specification
| Package name | Ball count | Package size(mm) | Ball Pitch(mm) |
|---|---|---|---|
|
uSSD
|
104 ~ 345
|
13 X 11.5 ~ 16 X 20
|
0.5
|
* Offers Product Customization
