USB

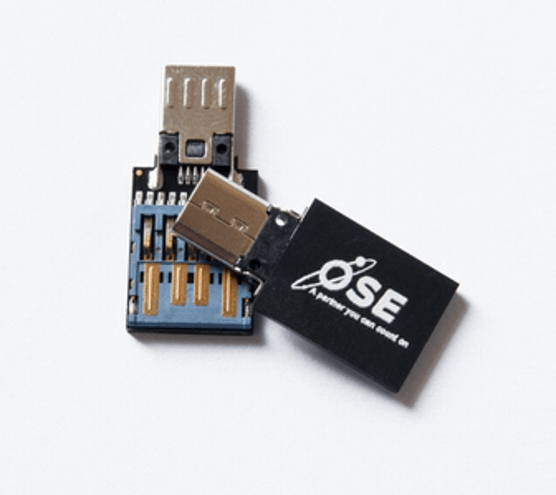

USB (Universal Serial Bus )
体积小、即插即用、携带方便、可重覆写入

相较于之前光碟片,储存容量小,资料保存不易的问题,占空间等缺点,USB储存装置翻转了以往的劣势,且USB产品已从之前的USB1.1开发到USB4.0,速度方面加倍来到双通道总共40Gb / s的传送速率,且可向下相容USB3.2及USB2.0

应用:

• 桌上型电脑
• 笔记型电脑
• 手机
• 车载影音系统

优势:

• 高堆叠制程能力
• 高密度SMT制程能力
• 一站式测试服务
• 客制化设计
• 稳定的焊线技术能力

USB可靠性

Test Item Condition Duration
High temperature storage test :

85℃

500 hours
Low temperature storage test :

-40℃

168hours
Temperature cycle test :

-40°C ~ 85°C

1000 cycles
Temperature and humidity storage test :

40°C /93% RH

500 hours
High temperature and high humidity storage test:

85℃/85% RH

1000 hours
Salt water spray test :

3%NaCl / 35C, /Spec. no.: STD Method 1009

24 hours
ESD test :

Contact pads : +/- 2KV +/ – 4KV

Drop test :

Non contact pads ( Coupling plane discharge ) : +/ – 8KV

Durability test :

Non contact pads ( Air discharge ) : +/ – 4KV +/ – 8KV +/ – 15KV

UV light exposure test :

Spec. no.: IEC 61000-4-2

Bending test :

Test height : 1.5m free fall

Torque test :

Number of time : 6 time

Burn in test :

Number of time : 10,000 mating cycles.

High temperature operation:

254nm, 15Ws/cm2

Low temperature operation:

Spec. no.: ISO 7816-1

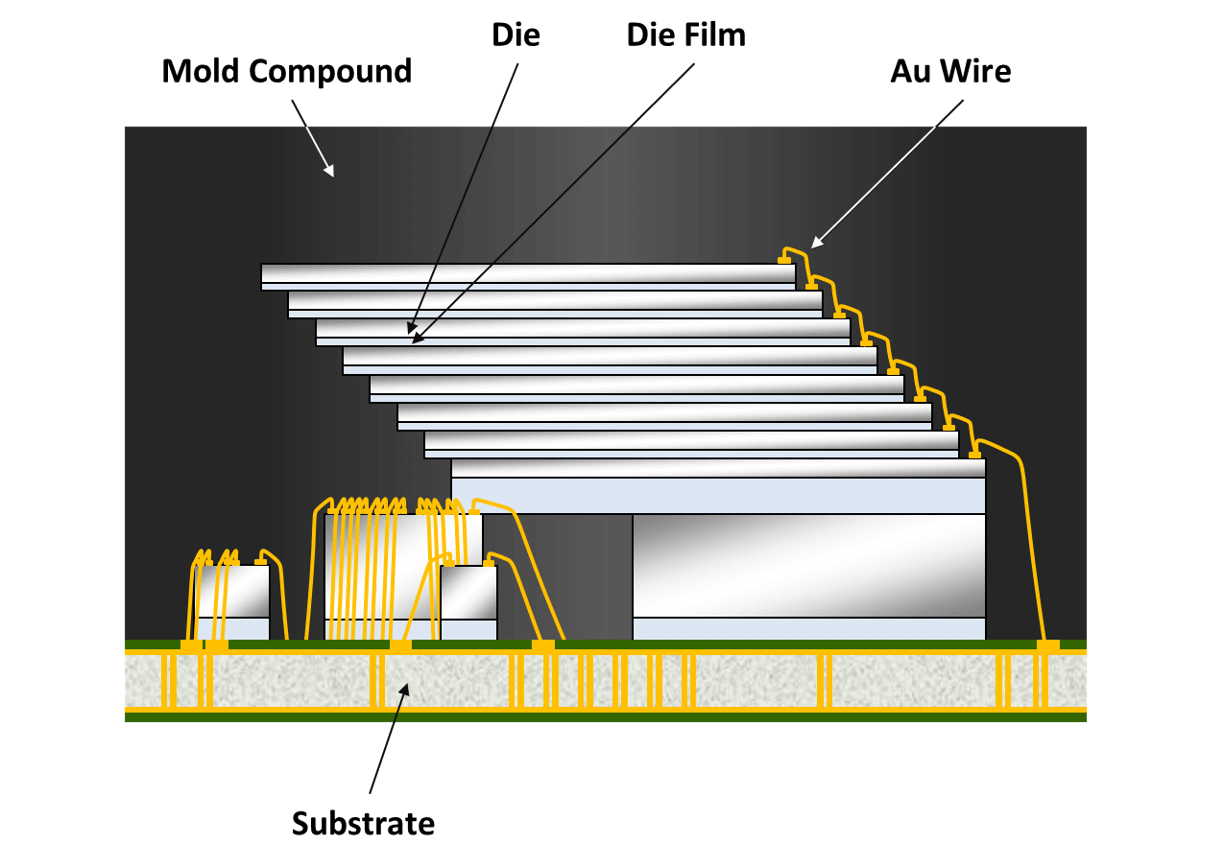

USB 结构剖面图

USB 规格表

Package Package size(mm)
USB2.0
11.3*15
11.3*24.8
USB2.0(OTG)
11.3*15
11.3*24.8
USB3.0
11.3*15
11.3*24.8
USB3.0(OTG)
11.3*15
11.3*24.8
