TSOP/TSSOP/SOP/SSOP
TSOP/TSSOP/SOP/SSOP
SO is a collection of packages that include TSOP、TSSOP、SOP、SSOP and so on. SO packages apply metal lead frame, have similar pin configuration as DIP packages but save space by approximately 30% to 50% and reduce approximately 70% thickness comparing to DIP packages.

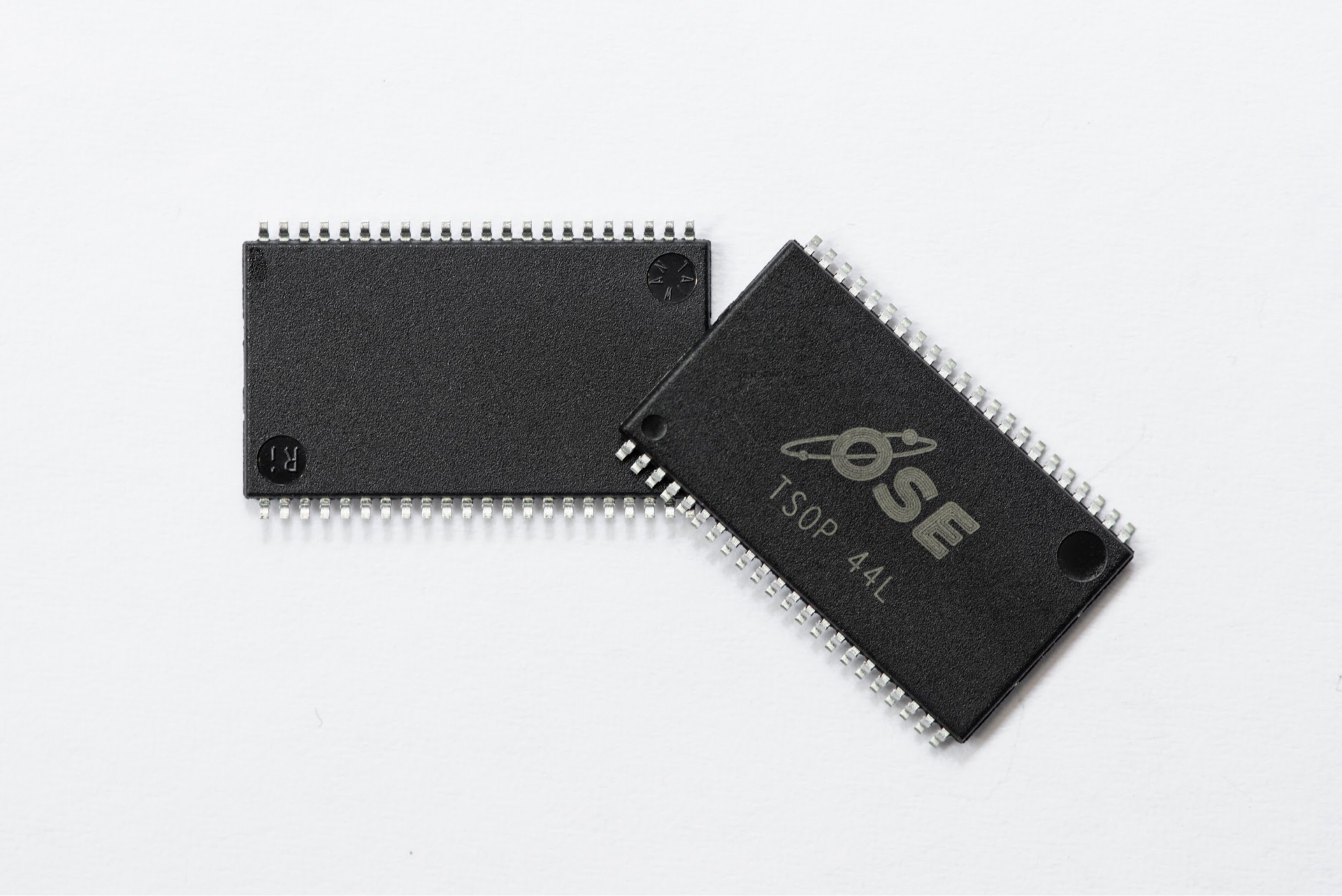

TSOP (Thin Small Outline Package) : Package with metal leads extending from two sides of the body, body width is greater than 300mil, package height is less than 1.2 mm.

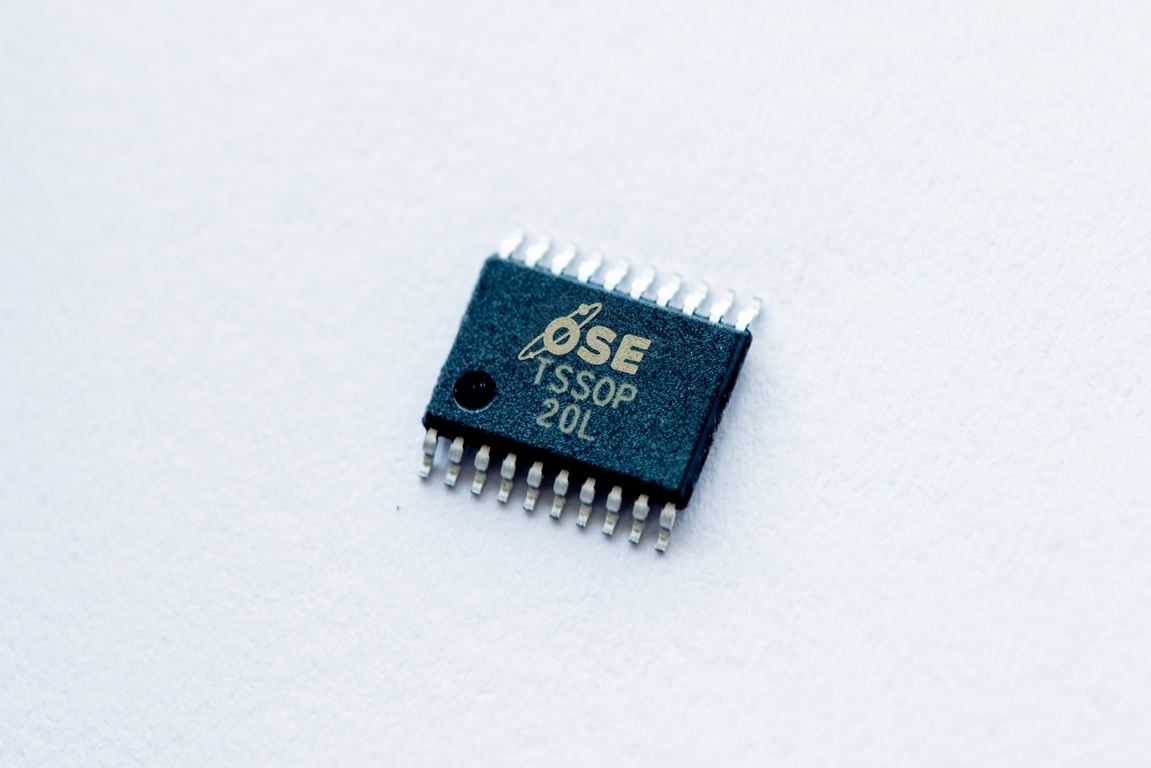

TSSOP (Thin Shrink Small Outline Package) : Package with metal leads extending from two sides of the body, body width is less than 300mil, package height is less than 1.2 mm.
SOP (Small Outline Package) : With metal lead frame, leads extending from two sides of the body and lead pitch is greater than 1.0mm.
SSOP (Shrink Small Outline Package) : With metal lead frame, leads extending from two sides of the body and lead pitch is less than 1.0mm.
Application
• Memory
• Portable Consumer Product
• Cell Phone
• Radio
• Personal Computer
• Automobile
• Controller
• Optoelectronic Component
Advantage
• Meet JEDEC Standard
• Slim Type
• Multi-die Production Capability
• Turnkey Solution
• Pb Free and RoHS Compliant
• 100% Pure Tin
TSOP/TSSOP/SOP/SSOP Reliability Test Condition
Test samples will be subjected to Jedec Std MSL 3 pre-conditioning unless the customer has special requirements.
| Test Item | Application | Method | Condition | Remark |
| Pre-Condition | JEDEC-STD-22 | A113 | MSL 3 | |
| Temp. Cycle | JEDEC-STD-22 | A104 | -65+0/-10°C & 150+15/-0°C |
Air to Air 2 cycles per hour |
| High Temp. Storage | JEDEC-STD-22 | A103 | 150+10/-0°C | |
| Pressure Cooker | JEDEC-STD-22 | A102 | 121°C/100%R.H. 29.7 psia |
|
| HAST | JEDEC-STD-22 | A118 | 130°C/85%R.H. 33.3 psia |
Without Bias |
| Steady temp./ Humidity |
JEDEC-STD-22 | A101 | 85°C/85%R.H. | Without Bias |

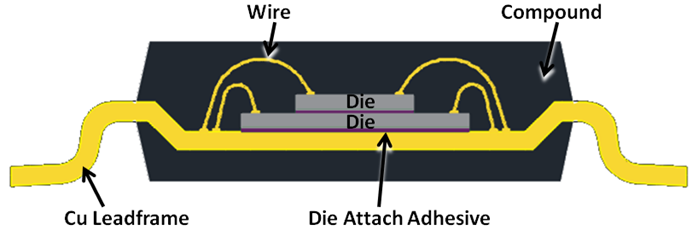

Cross-section Diagram of TSOP/TSSOP/SOP/SSOP
TSOP/TSSOP/SOP/SSOP Specification
| Package name | Package Profile | Pin Count | Package size |
|---|---|---|---|
|
TSOP
|
Thin Small Outline Package
|
32 / 44 / 48 / 56
|
8 X 20~ 14 X 20 mm
400 mil |
|
TSSOP |
Thin Shrink Small Outline Package
|
8 ~ 64
|
173 ~240 mil |
|
SOP |
Small Outline Package
|
8 / 16
|
208 ~ 300 mil
|
|
SSOP |
Shrink Small Outline Package
|
28 / 40
|
150 ~ 209 mil
|
* Offers Product Customization
