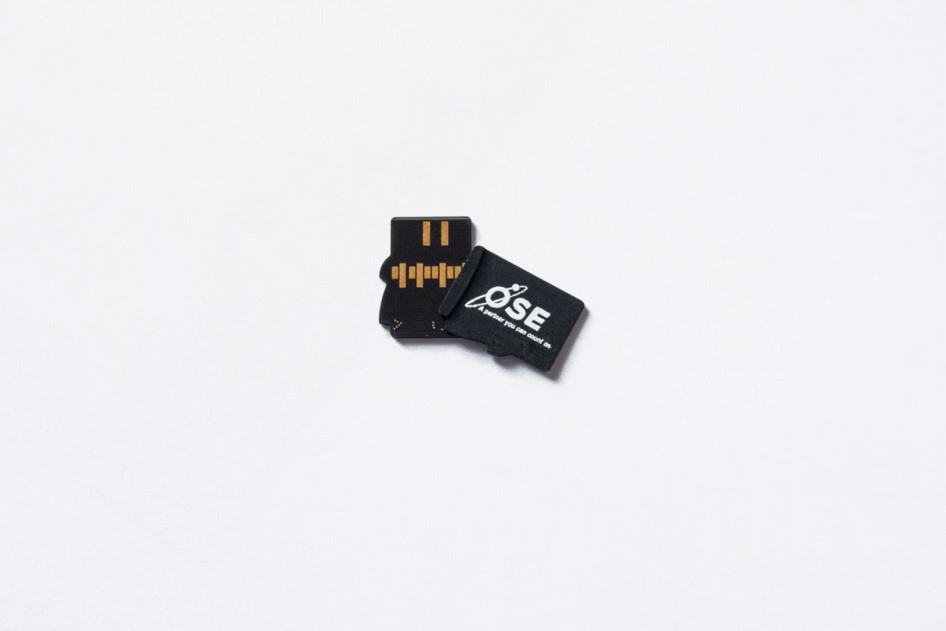

UFS Card
UFS (Universal Flash Storage)
Universal flash memory
Universal flash memory
UFS is a package type following the JEDEC standard for mobile applications, camera, flash memory which supports high speed data transmission with stability and advanced performance.
Application
• AR / VR
• Flash memory card
Advantage
• Higher Speed of Data Transmission
• Simultaneous Read and Write Function
UFS Card Reliability Test Condition
Test samples will be subjected to Jedec Std MSL 3 pre-conditioning unless the customer has special requirements.
| Test Item | Application | Method | Condition | Remark |
| Temp. Cycle | JEDEC-STD-22 | A104 | -65+0/-10℃ & 150+15/-0℃ |
Air to Air 2 cycles per hour |
| High Temp. Storage | JEDEC-STD-22 | A103 | 150+10/-0℃ | |
| HAST | JEDEC-STD-22 | A118 | 130℃/85%R.H. 33.3 psia |
Without Bias |
Cross-section Diagram of
UFS
UFS Specification
| Package name | Pin count | Package size(mm) |
|---|---|---|
|
UFS |
12 |
11X15 |
* Offers Product Customization
