microSD / SD

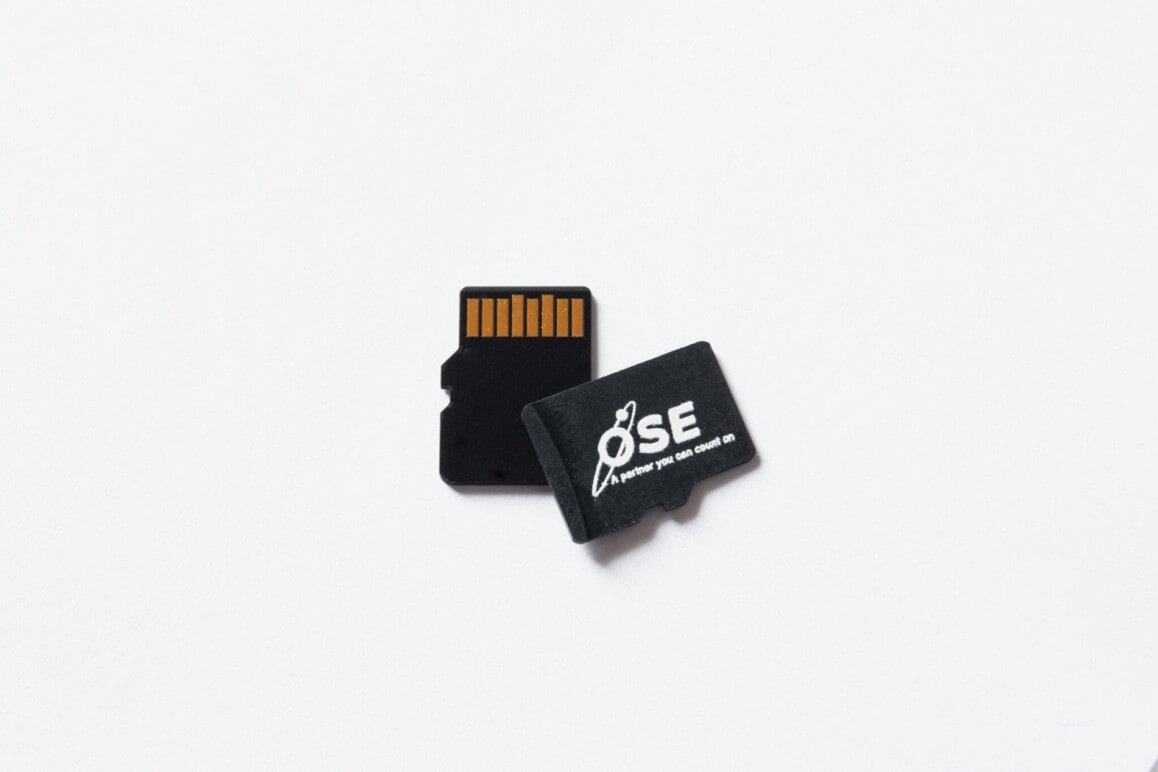

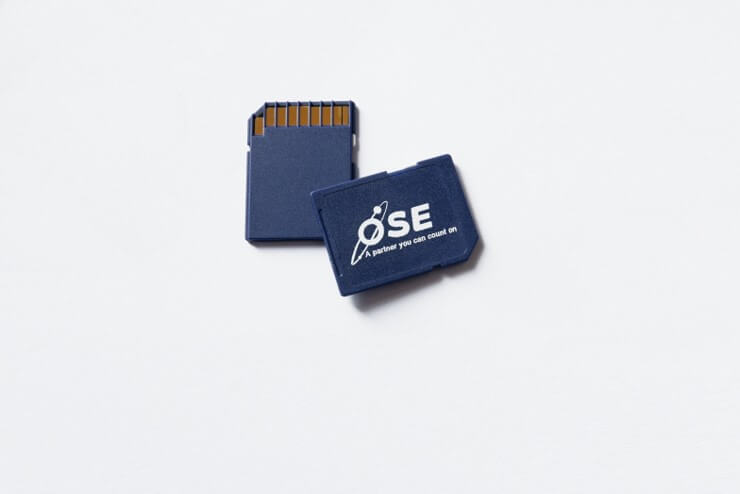

microSD / SD 記憶卡
記憶卡種類中最被廣泛使用的兩個形式：SD與microSD。
使用Flash(快閃記憶體)晶片作為儲存媒介，具有可重複讀寫且無需外部電源的特性。
應用
• 無人機
• 行動攝影設備
• 智慧型手機
• 數位相機
• 消費型電子產品及行動裝置
優勢
• 提供完整的解決方案，設計/封裝/測試一站式服務，有效縮短產品上市時間。
• 成熟穩定的高堆疊技術，提供更高儲存容量、更快讀寫速度的同時也維持穩定的高良率。
• 彩色噴印，提高產品辨識度。
• 提供客製化服務。
microSD / SD 可靠性試驗條件
依照SDA可靠性試驗規定項目
| Test Item | Application | Method | Condition | Duration | Remark |
| High temperature storage test | SDA | 85°C | 500 hours | ||
| High temperature operation Test | SDA | 85℃ | 72 hours | ||
| Low temperature storage test | SDA | -40°C | 168 hours | ||
| Low temperature operation Test | SDA | -25℃ | 72 hours | ||
| Burn in test | SDA | 25℃ | 72 hours | ||
| Temperature cycle test | SDA | -40°C ~ 85°C | 100 cycles | ||
| Temperature and humidity storage test | SDA | 40°C / 95% RH | 500 hours | ||
| Salt water spray test | MILD STD | 1009 | 3%NaCl / 35℃ | 24 hours | |
| ESD test | IEC 61000-4-2 |
Contact pads : +/- 2KV +/ – 4KV Non contact pads ( Coupling plane discharge ) : +/ – 8KV Non contact pads ( Air discharge ) : +/ – 4KV +/ – 8KV +/ – 15KV |
|||
| Drop test | SDA | 1.5m Free fall | 6 times | ||
| Durability test | SDA |
With Non UHS-II microSD Connector: 10,000 mating cycles With UHS-II microSD Connector: 5,000 mating cycles |
|||
| UV light exposure test | ISO 7816-1 | UV: 254 nm, 15 Ws/cm | |||
| Bending test | SDA | 10N on center of the card(Both side), 60sec | 5 cycles | ||
| Torque test | SDA |
0.15N-m,keep 30sec,
Max. +/-2.5 degree for SD
Card 0.1N-m,keep 30sec, Max. +/-2.5 degree for microSD Card |
5 cycles | SD/microSD條件不同 | |
| X-ray Exposure | ISO7816-1 |
0.1 Gy of medium-energy radiation (70 keV to 140 keV, cumulative dose per year) to both sides of the card |
|||
| WP switch endurance | SDA | Slide force (1N-5N) | 1000 cycles | ||
| Rib Strength | SDA | Tolerance of 4N force 1 second |

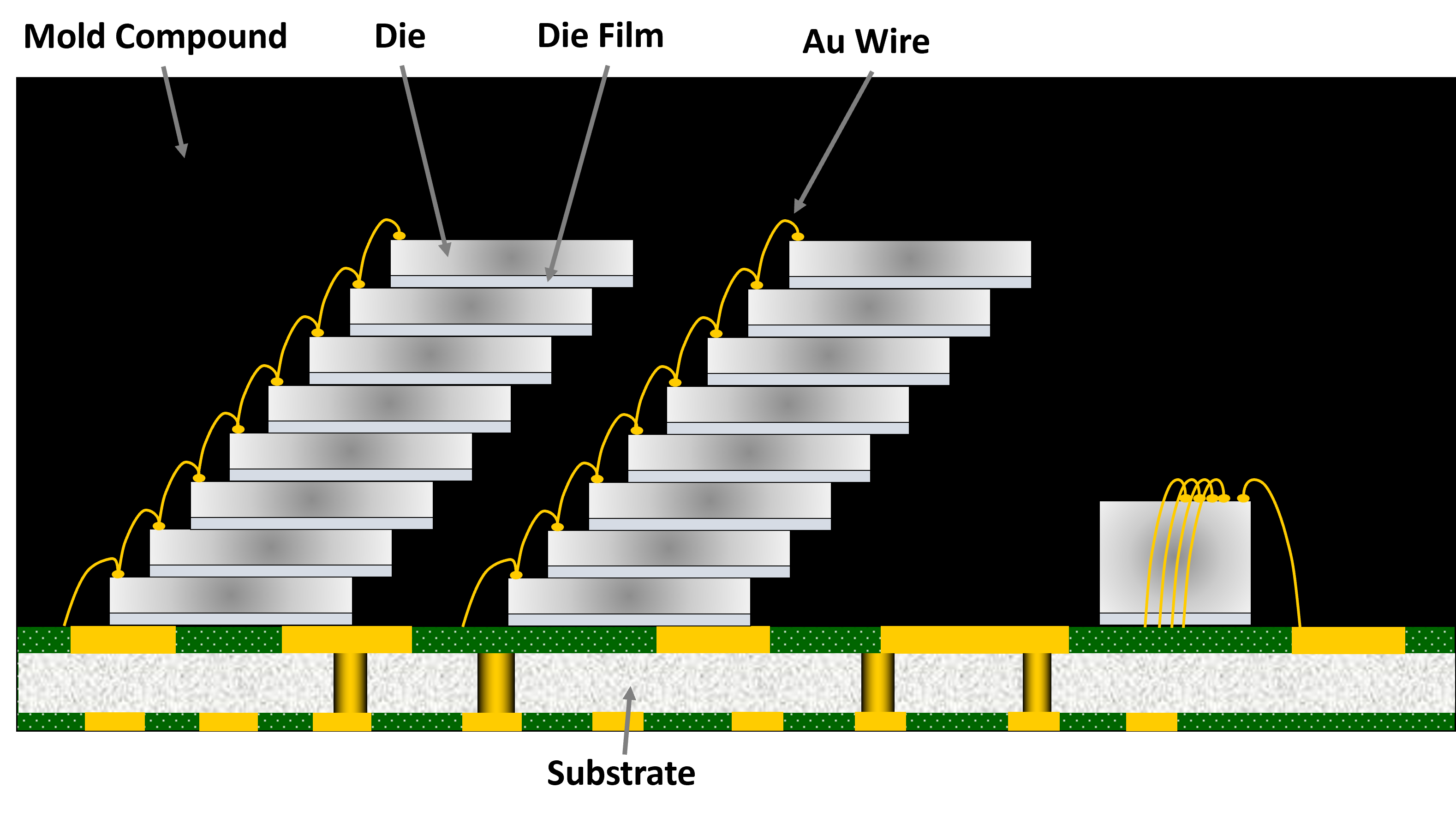

SD 結構剖面圖

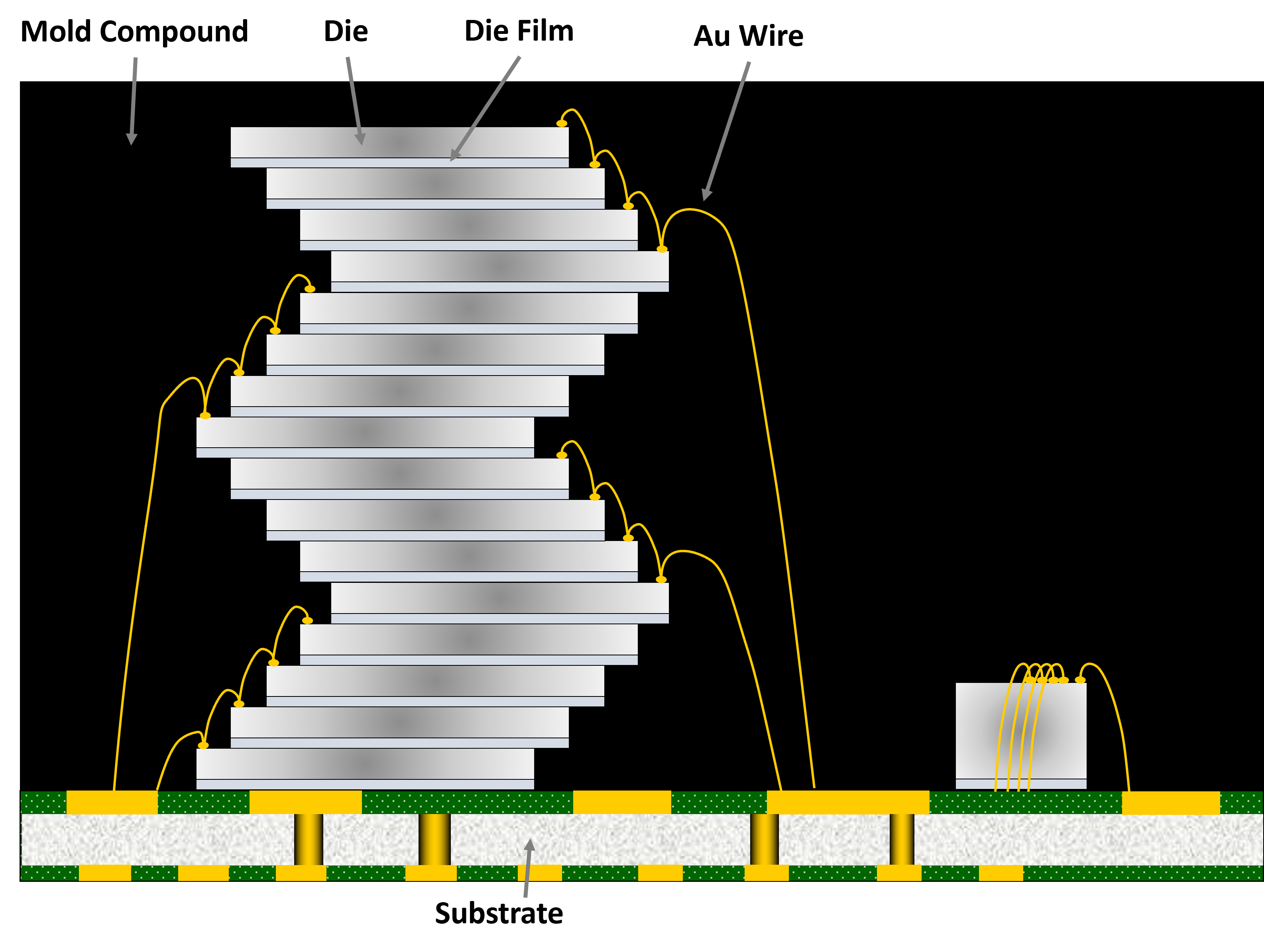

microSD 結構剖面圖
microSD / SD 規格表
| Package | Pin Count | Package size(mm) |
|---|---|---|
|
microSD |
8 / 16 / 17 |
11 X 15 |
|
SD |
9 / 17 |
24 X 32 |
* 提供客製化設計服務
